모듈/Type - 10 Mini

포트웰코리아, PCOM-BA03GL(Intel Atom X7000 Series (Amston lake))

포트웰코리아 2024. 1. 10. 08:00



LPDDR5 SDRAM을 탑재한 Type 10 mini COM-Express® 모듈 기반의 Intel® Atom® x7000 시리즈 SoC

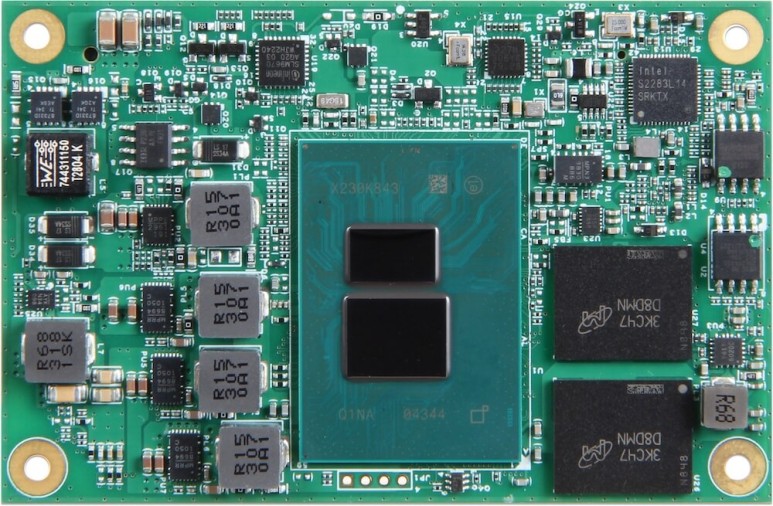

포트웰코리아_Portwellkorea_PCOM-BA03GL_전면





Portwell의 PCOM-BA03GL은 인텔® Amston Lake 아톰® x7000 시리즈 프로세서를 기반으로 하는 타입 10 mini COM Express®(84 x 55mm) 모듈입니다. 이 아치형 구조에서는 LVDS와 4K 해상도의 HDMI, eDP, DP를 대량으로 제공할 수 있습니다. 또한 최대 3.6GHz의 터보 모드를 제공하며, 4개의 PCIe 3.0 x1, 2개의 USB 3.2 Gen2, 8개의 USB 2.0 및 2개의 SATA III 장치를 확장할 수 있습니다. 초저전력 소비(6W~12W), 넓은 온도 지원으로 에너지 절약과 높은 유효 성능을 제공할 수 있습니다. 자동화, 군사, 접객업, 운송 등과 같은 다양한 다목적 애플리케이션을 목표로하는 수직 솔루션으로 PCOM-BA03GL을 추천드립니다.



포트웰코리아_Portwellkorea_PCOM-BA03GL_후면





특징

  • Intel® Atom® 프로세서 x7000 시리즈(Amston Lake)
  • On board LPDDR5 SDRAM up to 16GB
  • 최대 64GB의 eMMC 온보드
  • 저전력 소비(6W ~ 12W), 4K 디스플레이 해상도
  • 넓은 온도 -40°C ~ 85°C 지원(SKU)
  • 2.5GbE(SKU)로 Intel® TCC/TSN 지원





스펙

CPU and General
Product PCOM-BA03GL
Form Factor (mm) Type 10, Mini Form Factor COM-Express® ( 84 x 55 mm)
Processor Intel® Atom
x7425E x7211E x7213E x7433E x7835E
Core 4 2 2 4 8
Freq. 1.5 GHz 1.0 GHz 2.0 GHz 1.5 GHz 1.3 GHz
Turbo 3.4 GHz 3.2 GHz 3.2 GHz 3.4 GHz 3.6 GHz
Cache 6MB 6MB 6MB TBC TBC
Processor Graphics Intel® UHD Graphics for 12th Gen Intel® Processors
Graphics Base Frequency 800 MHz 400 MHz 600 MHz 600 MHz 800 MHz
Graphics Max Dynamic Frequency 1.0 GHz 800 MHz 800 MHz 800 MHz 1.0 GHz
HW Encoding TBC
HW Decoding TBC
HW Acceleration Gen 11 LP, DirectX 12, OpenGL4.6, Vulkan
Processor TDP 12W 6W 9W 9W 12W
BIOS AMI BIOS
In-Band ECC Yes Yes Yes Yes Yes
Memory (on board LPDDR5) 16GB 4800 MT/s 16GB 4800 MT/s 16GB 4800 MT/s 16GB 4800 MT/s 16GB 4800 MT/s
Storage (on board eMMC) TBC TBC TBC TBC TBC
Temperature Range 0 ~ 60 °C -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C





I/O INTERFACE
SATA 2 x SATA III
USB 2 x USB 3.2 Gen2
8 x USB 2.0
Ethernet 2.5 GbE
Serial I/O GPIO 8 GPIO
I2C Baud Rate: 3.2MHz
SMBus Baud Rate: 1MHz
UART 2 Serial Port (Tx/Rx)
PEG N/A
PCI Express 4x PCIe 3.0 x1
Display Default Options Resolution
DDI DP up to 4096x 2160 @ 60Hz
LVDS / eDP HDMI up to 4096x 2160 @ 60Hz
LVDS(24bit, dual channel) up to 2560x 1600 @ 60Hz
eDP up to 4096x 2160 @ 60Hz
Security TPM 2.0, Intel®AES







MECHANICAL & ENVIRONMENT
Dimension 84 x 55 mm
Power DC IN 4.75V to 20V, AT/ATX Mode
Storage Temperature -40°C to 85°C
Operating Temperature -40°C to 85°C
Certification TBD
MTBF TBD
Vibration TBD
OS Win 10 IoT Enterprise
Ubuntu, Yocto







 제품의 자세한 내용은 아래의 링크를 참고하시면 됩니다 :)





Com Express Module, Type-10 Mini, PCOM-BA03GL

COM Express® Type6 Compact size module with Intel Atom® Amston Lake Series SoC DDR5 SO-DIMM, DDI, PCIe Gen 3, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA
