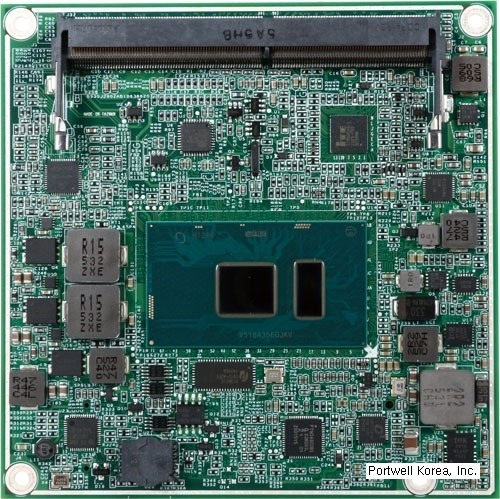

포트웰 코리아 Portwell Korea, 컴모듈 COM Express Type-6, PCOM-B644VG Kabylake-U CPU

포트웰 코리아(주) 한국지사(http://www.portwell.co.kr), 컴모듈 Com Express 신제품(PCOM-B644VG)을 발표했는데요,
Intel의 7세대 CPU인 Kabylake-U Processor를 지원합니다.

PCOM-B644VG brings three important factors, DDR4 memory support, Gen3 PCIe support, and 30% faster graphic performance. The Gen3 PCIe support provides faster PCIe speed so that the performance of PCIe expansion card will be better. It is crucial for Networking and Medical related applications. The enhanced graphic performance brings 4K support. The OTG support gives customer more flexibilities on developing new applications in different usages.

                                                             Specifications

Form Factor (mm)	Compact (95 x 95mm)
Type	Type 6
CPU/Clock/Cache	Intel® 7th Generation Core™ ULT CPU
Chipset	SoC
Memory	DDR4-2133MT/s Non-ECC 2 Memory Channel
USB	3 x USB 3.0 7 x USB 2.0 1 x USB 3.0 / USB 2.0 / OTG
PCI Express	1 x PCIe x4 (PEG) 1 x PCIe x1 1 x PCIe x4 / 4 x PCIe x1
Ethernet	Intel® I219LM
Audio	IIntel® High definition Audio
Graphic Controller	Intel® HD Graphics 620
Carrier Board	PCOM-C605 (Type 6)
Extend Temperature Support	0~60'C support



                                                                   Features

• Kaby Lake-U is the 7th Generation Intel® CoreTM Processor with 14nm and brand new architecture provide more performance
• Seek for low profile solution but with high performance and low power
• Support faster I/O interfaces on Five PCI Express Gen3 lanes (four x 1 can be configured to one x4 lane)
