포트웰코리아, WQ7-M31(Intel® Amston Lake 패밀리 프로세서 탑재)

포트웰코리아 2025. 4. 25. 11:21



안녕하십니까.

포트웰코리아에서 'WQ7-M31'를 소개합니다.



WQ7-M31은 Intel® Amston Lake 제품군 프로세서가 탑재된 Qseven® 모듈입니다.

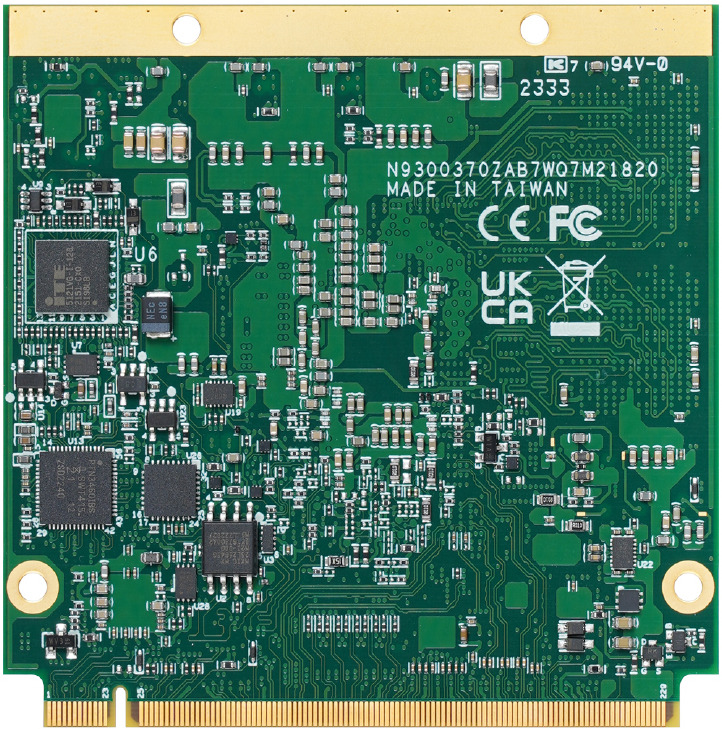

WQ7-M31 _전면



WQ7-M31은 인텔에서 출시한 차세대 모바일 프로세서인 Intel® 최신 Atom x7000RE 프로세서 제품군(Amston Lake)을 기반으로 합니다. 이 제품은 인텔의 초저전력 기술과 최신 Gracemont 코어를 사용하여 더 높은 성능과 낮은 에너지 소비를 자랑합니다. Amston Lake 플랫폼은 향상된 성능, 더 높은 그래픽 기능, 획기적인 메모리 및 I/O 기능, 더 넓은 범위의 작동 온도를 제공합니다.

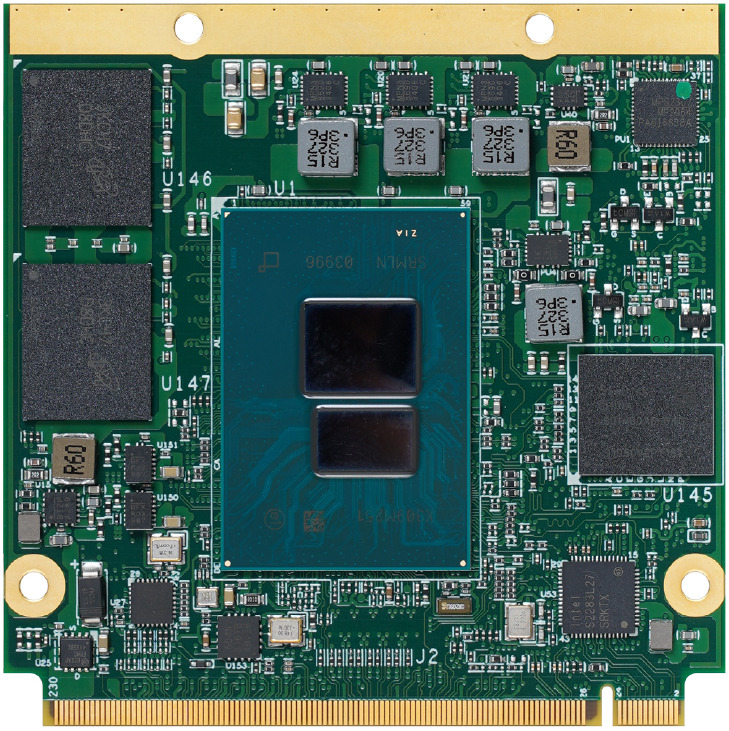

WQ7-M31 _전면



특징

  • 인텔® Atom™ x7000RE ® 프로세서 제품군
  • 24비트 LVDS, HDMI/DP 출력 지원
  • 4개의 PCI Express Gen3 레인 지원
  • USB 3.0 2개, USB 2.0 6개 지원
  • eMMC 5.1 스토리지 옵션
  • -40 ºC ~ 85 ºC의 산업용 온도 지원





스펙

스펙은 아래 표를 참고 바랍니다.

General
CPU
Intel® Atom® x7211RE, Dual cores, 1.0 GHz, 6W TDP
Intel® Atom® x7213RE, Dual cores, 2.0 GHz, 9W TDP
Intel® Atom® x7433RE, Quad cores, 1.5 GHz, 9W TDP (Default SKU)
Intel® Atom® x7835RE, Octo cores, 1.3 GHz, 12W TDP
Memory
Onboard 2G/4G/8G LPDDR5 with 4800 MT/s
Single memory channel, 32bit x 2
In Band-ECC (Intel® Atom® CPU)
Storage
Support onboard eMMC 5.1 flash up to 256GB
DisplayPort Interface
DDIA
24-bit Dual Channel LVDS up to 1920×1200@60Hz
DDIB
DisplayPort 1.4 up to 8K (7680×4320)@30Hz/ 4K(4096×2160) @60Hz
Or HDMI 2.0b up to 4K(4096×2160) @60Hz
Audio
Audio
Intel® HD Audio integrated in SoC
Ethernet
Ethernet
1x Intel® i226-IT
I/O Interfaces
PCIe
4x PCIe Gen3
USB
2x USB3.0, 6x USB 2.0
SATA
2x SATA 3.2
Other I/O Interfaces
Other I/O Interfaces
1x CAN (option), 1x I²C, 1x HDA, 1x PWM, 1x SMBus,
14x GPIO, 1x UART, 1x WDT, 1x FAN Control
Video
GPU Feature Support
Intel® Gen 12UHD Graphics driven by Intel Xe
architecture |
OpenGL 4.6 OpenCL 3.0 | HW accelerated video
decoding HEVC/H.264/MPEG2/VP9/VC-
1/WMV9/MJPEG | Encoding HEVC/H.264/VP9/MJPEG
HDCP 1.4/2.2 for 4K premium content protection
Embedded BIOS
Embedded BIOS
AMI UEFI with Fast Boot support l Display Auto Detection l
Flash Update l Password Lock l OEM Logo for startup screen
Mechanical and Environmental
Form Factor
Qseven® 2.1
Dimension
Qseven module, 70 mm x 70 mm
Operating Temperature
Industrial: -40°C to +85°C, w/ 0.5m/s airflow
Humidity
0-95% RH, non-condensing
Power
Standard Input
5V DC ±5%
Power Management
ACPI 5.0 compliant l Fully Integrated Voltage Regulator (FIVR)
Operating System
Operating System
Microsoft® Windows 10 IoT Enterprise LTSC 2021 (64-bit)
By project request: Yocto LTS kernel 2022





<<제품에 대한 자세한 내용은 아래 링크를 눌러 확인해 보세요>>

https://www.portwell.co.kr/products/q7-module/wq7-m31
